Explosion-proof LED ceiling lightings (AQX-G8183)
| Model | AQX-G8183 |
Rated Voltage | AC220V 50/60hz (customizable) |
| Color Temperature | 2700-6500k (appointed) |
| Luminance Efficiency | ≥110lm/w |
| Color | Yellow/Lime |
Explosion-proof Mark | Ex d e mb IIC T5/T6 Gb, Ex tD A21 IP66 T180°C |
| Suitable Cable | Φ10mm ~ Φ14mm |
| Device Entry | G1/2" |
| Installation Method | Ceiling; wall; suspender; flange; guardrail; etc |

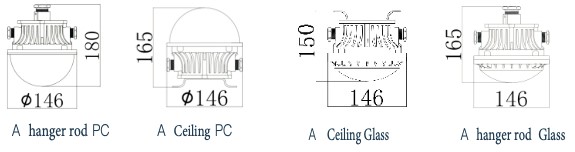

| Power | Dimension | Weight(PC): Type 20W~30W: 146*165 1.25kg 16pcs (hanger rod) PC 20W~30W: 146*180 1.25kg 16pcs (celing) PC 20W~30W: 146*165 1.30kg 16pcs (hanger rod) Glass 20W~30W: 146*150 1.30kg 16pcs (celing) Glass | |
